Q1: What is pipe crawler camera system or robot?

Pipeline inspection robots, also known as robotic pipe inspection cameras or sewer crawler cameras, used to take photos and videos in pipelines or tunnels, generate inspection reports, and conduct pipeline assessments to formulate pipe maintenance and repair plans. Pipe crawler camera system usually consist of a crawler body, a controller, and an electric reel wire. The cctv pipe crawler is equipped with adjustable lightness, high-definition camera, and optional wheels. CCTV inspection robots are used to identify pipeline blockages, cracks, welds, and leakages.

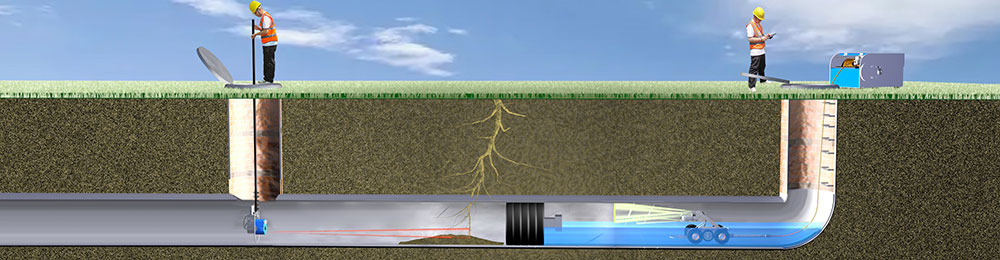

Q2: How do remote pipe crawler camera system work?

Entering the pipeline: The cctv crawler can forward, backward.

Real-time take videos and pictures: IP68 waterproof 4-megapixel HD front camera, assisted by LED light, captures real-time video and high-definition images of the pipeline. Some pipe inspection robots also support record of internal pipeline conditions for analysis.

Data transmission: The signal is transmitted in real time via cables to ground-based controller, typically a controller or tablet.

Analysis Inspection Report: Inspectors can observe the interior of pipelines from the ground, identify pipe problems (such as cracks, blockages, corrosion, etc.), and generate inspection reports.

Pipe cralwer camera system like our Jiutai Technology cctv pipe inspection robot also can customized more functions such as laser measurement, grinding, and magnetic thickness measurement, supporting more demanding pipeline inspections.

Q3: What are the advantages of using pipeline robots for inspection?

A: Compared with manual inspections, pipe crawler camera system offer many advantages:

Safety: They avoid the potential dangerous situation in pipeline internel spaces.

High efficiency and accuracy: NDT inspection tools offer quickly and efficient inspections, can detect cracks and some other defects, and provide HD images and videos.

Save money and time: They can helping pipeline inspection contractors save time and money.  achieve "precision pipe maintenance, repairs" and avoid unnecessary excavation, In some cases, companys or government may need to regularly inspect pipelines or underground pipe networks to ensure compliance with regulatory  requirements. Remote pipeline cameras can help them meet these requirements in a timely and cost-effective manner.

Comprehensive inspection: The camera len can 360 degree rotate and 220 degree flip, inspections of large and small pipelines, bends pipes, and other complex pipelines.

Q4: What are the applications of pipeline robots?

A: Their applications are very broad, including:

Municipal Drainage: Regular inspections of stormwater, sewage, and residential water pipes, blockage location, and pipe condition assessment.

Industrial Inspection: Internal inspections of process pipelines and pressure vessels in power plants and chemical plants.

Construction Industry: Underground laid pipelines, ventilation ducts, water pipes maintenance, sewage pipes daily inspections etc.

Oil and Gas Pipe: oil and gas pipelines corrosion and defect detection.

Wind turbine blade inspection: our GT400/GT380 inspection robot camera is specialized used for wind turbine blade.

Home water pipe,  camera

Other application: Electricity, chemical industry, ships, nuclear power, etc.

At Jiutai Technology, we have specialized in the research and development and production of pipeline non-destructive inspection equipment for 15 years. Our rigorous quality control, superior quality, superior service, and affordable pricing have resulted in successful applications in all of the aforementioned fields.

Q5: What Key factor should consider when choosing Industrial pipeline inspection robot for your work condition?

A: There are mainly the following points:

Pipeline Diameter: This is the most important point! The diameter mentioned here refers to the pipe inner diameter. Our pipe inspection robots offer many models, pipe diameters range from DN100 to DN3500 and beyond. If it is a small pipe, recommended pushrod inspection camera.

Camera: Consider camera resolution (2 megapixels, 4 megapixels), zoom function, 360° rotation and flip, and lighting intensity.

Crawler Body function: Focus on climbing, obstacle capability, travel speed, and anti-slip features.

Electric reel wire: how  length cable do you need? standard length is 100m, Maximum cable lengths is 300 meters, if you need 500m or above, we can support customized. If the pipe is very long, you can consider inspecting from both ends, If you need inspect 600 meters pipeline, and you inspect it from both ends, you only need to purchase 300 meters cable. So you don't need to customize any more and save money.

Waterproof Rating:high level water and dust resistance (e.g., IP68) is required to ensure stable operation in water environments.

Controller Features:  The software we developed independently, analysis software should support record video, take photos, measure defect sizes, generate reports, and locate problem points.

Q6: Can i get a professional inspection report?

A: You can generate a professional, detailed inspection report with a key. The report typically includes:

Overview of the pipeline (location, diameter, material, etc.).

Defect code and description.

Defect location.

Clear photos and video footage of the defect.

Quantitative data (if equipped with laser measurement).

This report is crucial for developing pipeline maintenance and repair plans, conducting project acceptance, and managing assets.

Q7: How much does it cost to purchase a pipeline crawler robot?

Different Configuration or models pipe crawler camera system have different price, if you need pipe inspection robot, please fill a document in our website or send messages to me. We will send our best solution and price by your work condition and budget.

Please keep your mind: maybe renting a pipe crawler is more cheaper in short term, but if you have many pipe inspect projects or need to regular inspections, purchasing one duct inspection camera will definitely be more cost-effective in the long term.

Q8: Why choose Jiutai Technology's sewer pipeline inspection robot?

A: We have been specializing in pipe inspection industry for 15 years, have our own research and development department.So far, we have successfully applied for and obtained 110 patents. Exported to over one hundred countries and solved the pipe inspection problems for 20000 enterprises.

Choosing us will give you:

Hight Quality: our equipment is durable and offers stable performance.

Strong research and development Capabilities: Our R&D team accounts for 25% of our total Employees. focusing on customer experience and feedback. Our product features always keep pace with industry trends.

Customer Support: We offer 24x7 technical support services, from pipeline inspection solutions and quotes to operator guidance and after-sales maintenance.

High Cost-Effectiveness: While offering high quality, we ensure competitive pricing that you can afford.
