a few days ago，I saw someone ask questions about pipe inspection camera on Quora , so i want to write this article to introduce pipe inspection cameras (or pipe inspection robots). Pipes are commonly in our city, but pipe problems are often difficult to detect. In the past, finding pipe blockages, leaks, or damage usually lot of time and money. Now, there's a better way: pipe inspection camera system.
pipe inspection camera brief introduce

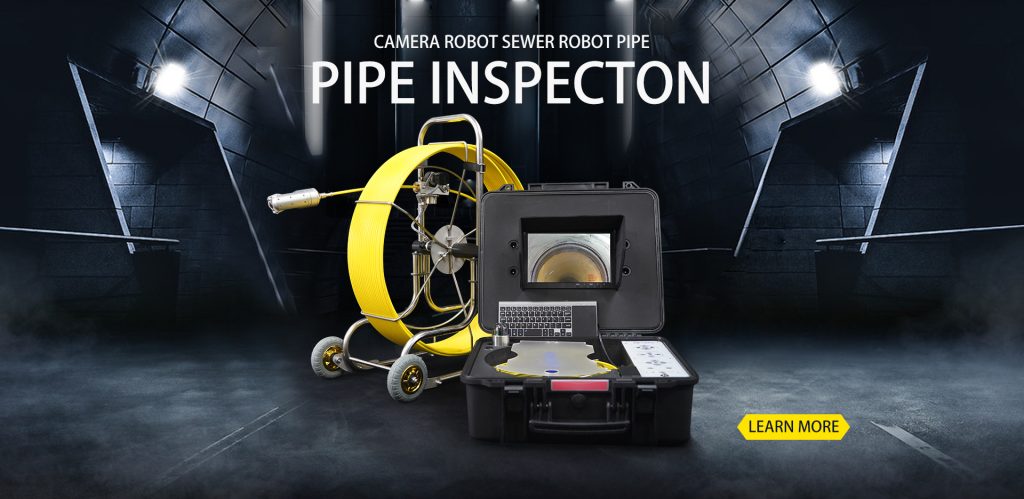

A pipe inspection camera is a tool specifically used for pipes non-destructive inspection. It consists of a camera, cable, and controller. The camera is inserted into the pipe by the push of the cable, transmitting images or picture from inside the pipe to the controller. pipe inspection camera allows you to view the inside of pipes and drains directly on a screen. It's like performing a video health check on your pipes without digging.
How does it work? Three key components
The pipe inspection systems are equipped with three parts:
- Probe (eye): This is a high-resolution, waterproof camera located at the end of a flexible cable. adjustable brightness LEDs to illuminate the dark pipes.
- Push Cable (Arm):This is a long cable used to push the camera into the pipe. It is usually equipped with a centerer and meter counter to accurately track the camera's advance distance.
- Control System (Brain): This is a handheld display or controller that shows real-time video and images from the camera inside the pipe. It also allows the operator to control the camera's tilt and rotation and record the inspection process.
Simple Four-Step Process:
- Insert: Insert the camera into the pipe access point.
- Inspect: While inspector the real-time video on the display, the operator threads the cable through the pipe.
- Identify problem and Locate: Once a problem is fined, the inspector can record the issue and laser measurements can pinpoint its exact location.
- Inspection Report: The videos and images are used to generate inspection report, and providing clear evidence of the pipe's condition.
Key Advantages:
- Cost Savings: Avoids unnecessary digging and destructive exploration.
- Time Savings: Quickly finds the pipe problems.
- Precision: Provides the precise location and nature of defects for perfect repair.
Applications:
This tool is an essential component for pipe contractors, municipal drainage maintenance, industrial pipe inspection, and property management.
Conclusion:
Pipe inspection cameras are no longer expensive, but a necessity tool for efficient and modern pipe maintenance.
Looking for a professional pipe inspection camera system supplier? Zhengzhou Jiutai Technology Co., Ltd. As a leading manufacturer, provides high-quality, durable, and affordable pipe inspection systems. Contact us to find the perfect solution for your needs!
The next article will focus on introducing the CCTV pipeline inspection robot.
