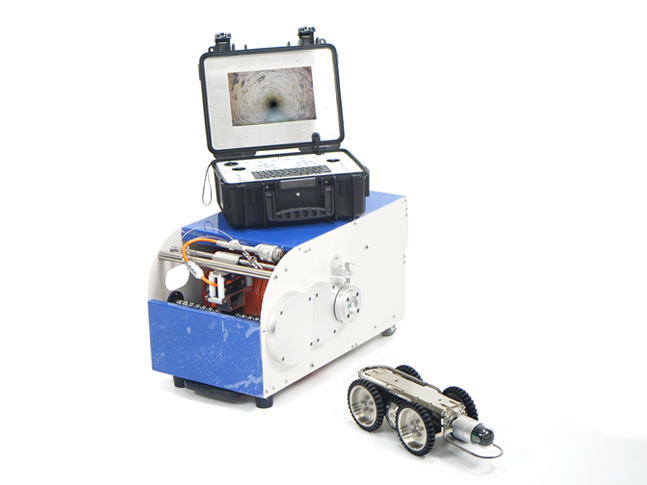

GT102A CCTV Crawler Camera for Pipe Inspection

GT102A Pipe Inspection camera

Screen Size

10’’ color LCD

Resolution

1920*1080

Pixel

2000000

Camera Diameter

51mm

Rotate

360° infinite rotate,220° constant flip

Cable Reel

Electrical Barrow, automotical reel

Products Introduce

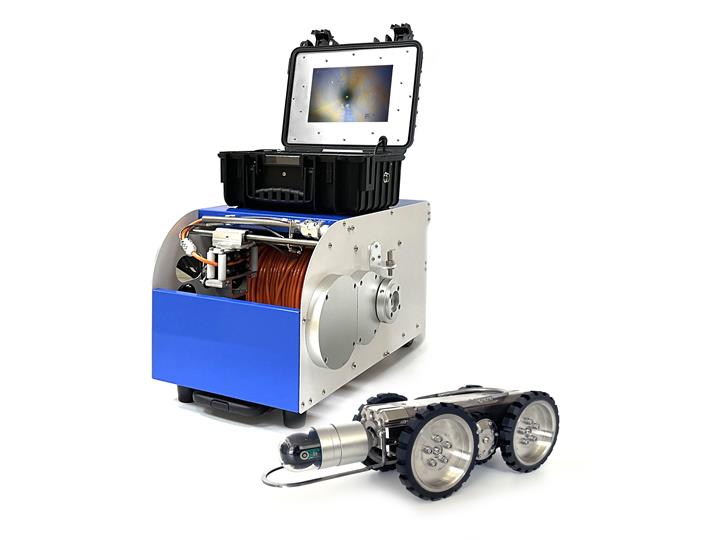

Jiutai GT102A CCTV Sewage Pipe Crawling Camera System can replace manual entry into the Industrial pipeline. It is equipped with 2MP HD Camera, 360 degree endless rotation 220 degree flip, portable electric wire reel. and use the controller to control crawling, touch button focusing, recording, playback, etc., providing timely and detailed image evidence for inspections. Support inspection report system.

Application

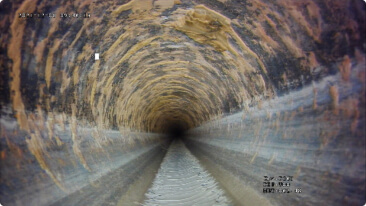

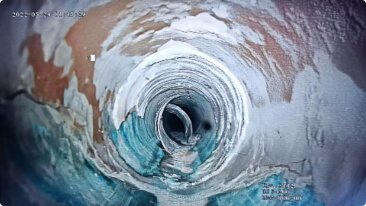

GT102A Sewage Pipe inspection Crawling Camera System is suitable for pipe diameter 120-600mm, with max cable 200m. This sewer inspection camera can go into the pipe to check the inner pipe condition, such as cracks, defects, damage detection, blockage, and so on. This pipe inspection crawler camera is widely used in many fields, such as gas pipes, oil pipes, petroleum, chemical industry, nuclear power, and high corrosion pipeline video detection.

Feature

IP68 Waterproof ,anti-corrosion, can be used in different place.

Forward ,backward,turn freely and adjustable speed.

With ambient light and adjustable illumination.

Lens 360°rotation and reversal without death angle.

Electrical Barrow, automotical and manual operation reel.

DIP, Meter counter, Pressure data are shown on the monitor.

Video can be storage and replay on the control box.

Laser is standard,512 HZ is customized.

Parameters

Screen Size10’’ color LCD
Resolution1920*1080
Pixel2000000
Camera Diameter51mm
Rotate360° infinite rotate,220° constant flip
Cable Reel Electrical Barrow
Suitable pipe diameter120-600mm
Cable100m standard-customized
WaterproofIP68

Comparison of pipe inspection robot camera

Gt108GT102B    GT102A
Working length300m150m    150m
Min/Max Pipe Diameters200-3500mm(8”-137”)150-2000mm(6”-78”)120-600mm (5”-24”)
Waterproof   IP68 IP68 IP68
Front camera  Pan Tilt Zoom auto focusPan Tilt Zoom auto focusPan-and-tilt auto focus
Rear-view camera   YesYesYes
Camera Lens     360°rotate  220°flip Electric Lifting360°rotate  220°flip360°rotate 220°flip
pixel1920X1080 /2560X16001920X10801920X1080

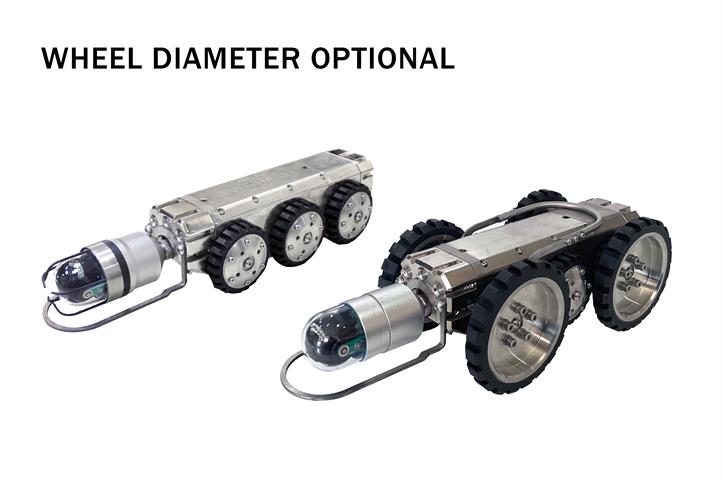

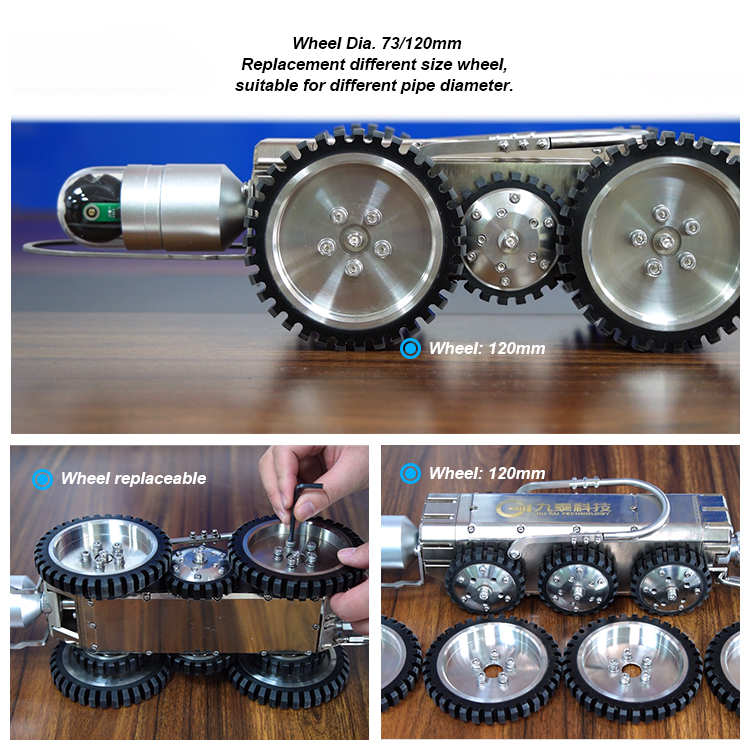

Extra FeaturesInclinometer, Inspection Report, Wheels of different dia. Laser(optional)

Machine Parts

Machine Parts Of GT102A CCTV Sewer Crawler Robot:

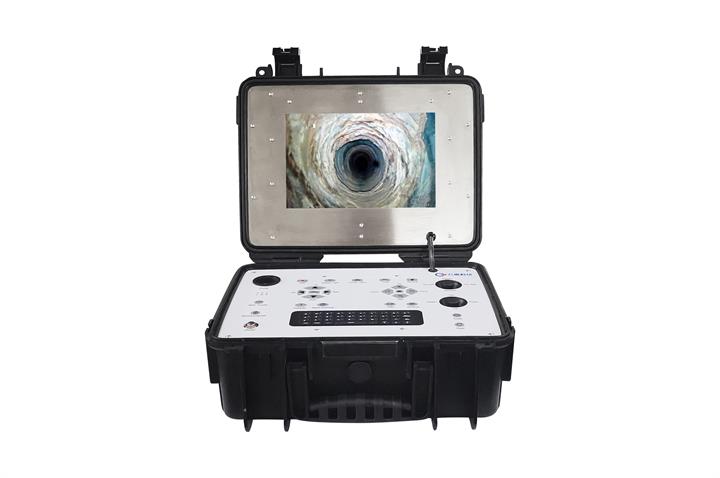

sewer pipe inspection robot cameras controller
  • Name:10.1" HD Central Control system
  • Resolution:1920*1080.
  • Management function: IPS HD Image real time
  • Camera Switch:Front camera to rear camera
  • Keyboard integration:real-time recording
  • Function: Support photo,video,will see and other functions
  • Dust control panel
  • Video output:HDMI
  • Storage capacity:32G(Support 1TB)

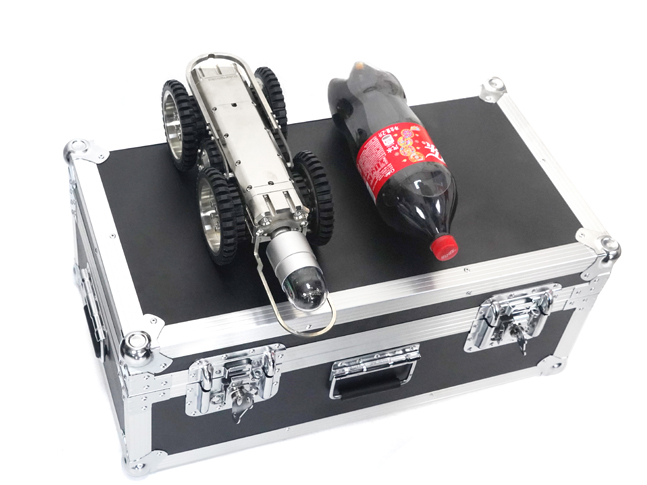

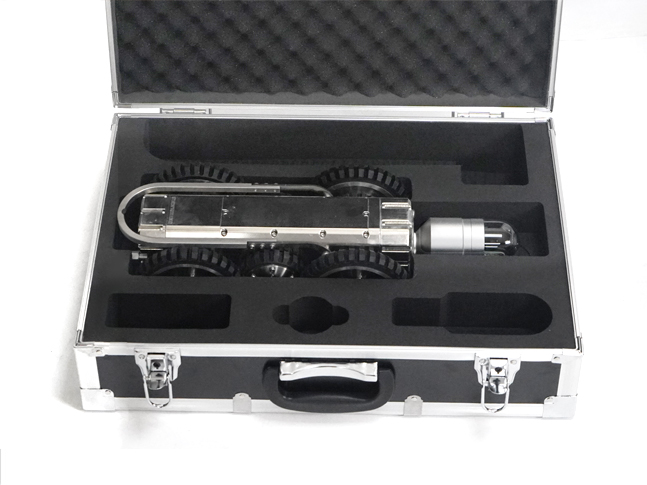

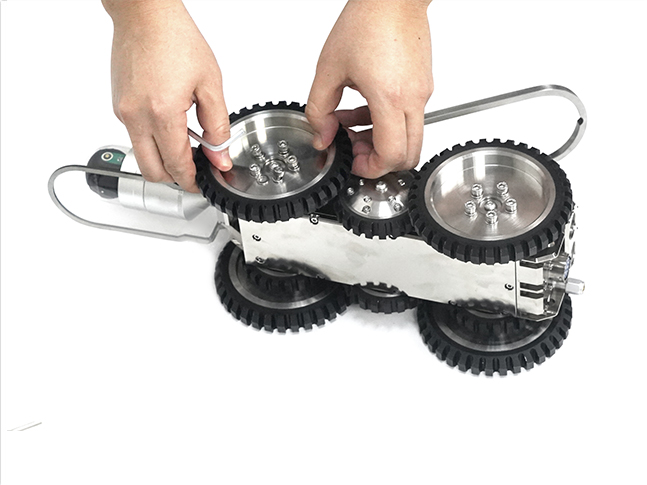

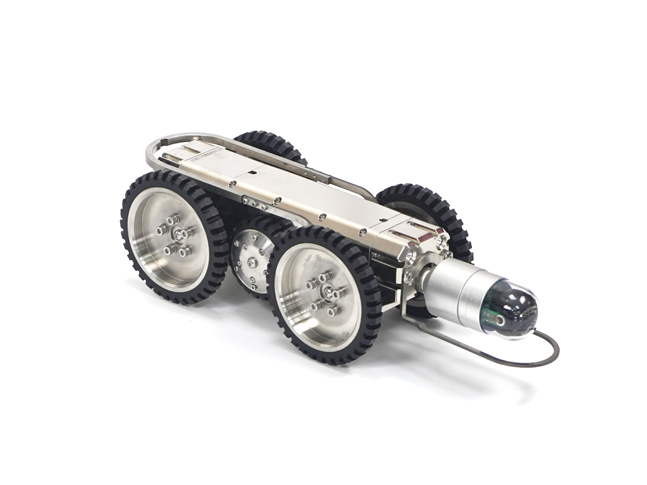

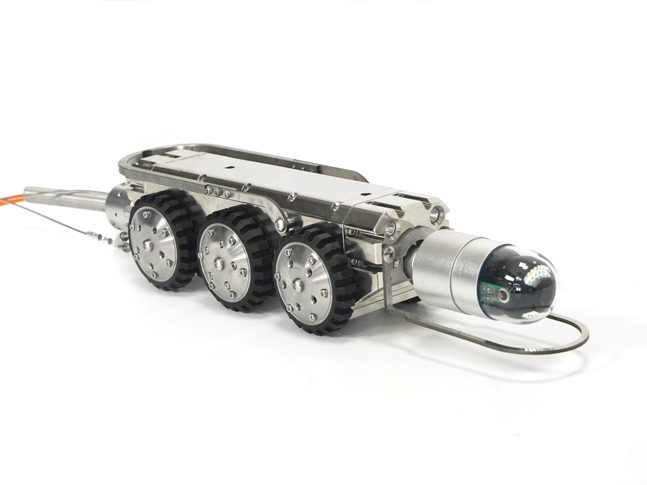

  • Name: GT102A CCTV Crawler System
  • Pipe diameter:120-600mm
  • Pixel:2MP
  • Front camera:360° rotate,220 flip
  • Camera light:3 level adjustable
  • Laser: Support customized
  • Camera lifting: electrical
  • Waterproof: IP68
  • Moving speed:0-20m/minute,Four-wheeled

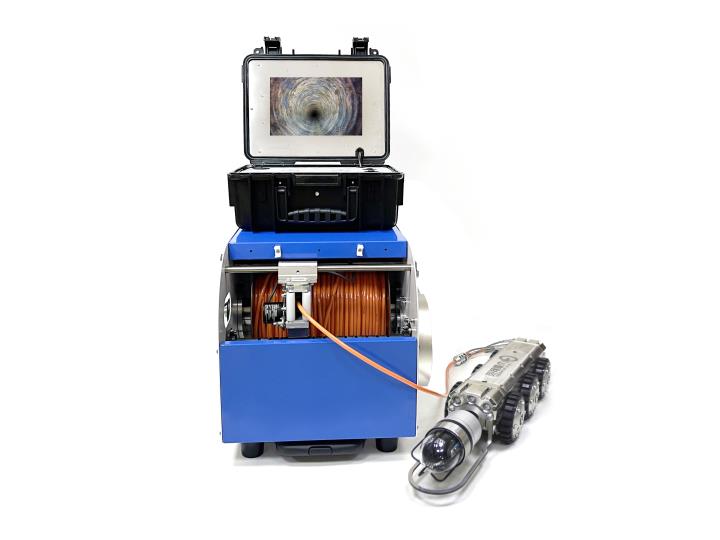

Sewage Pipe Crawling Camera System

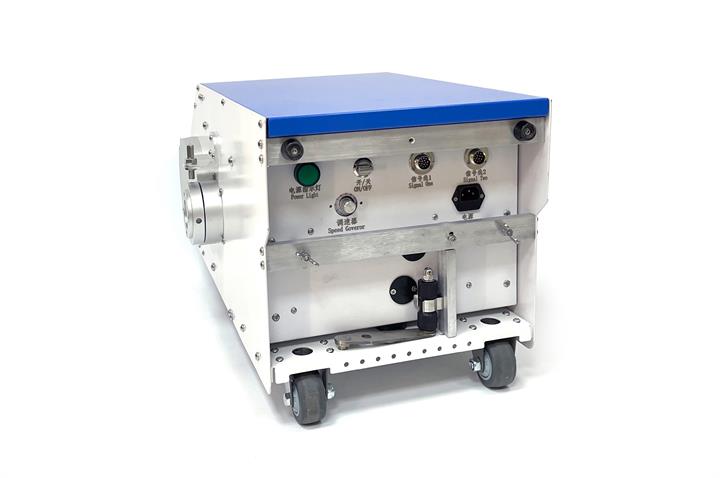

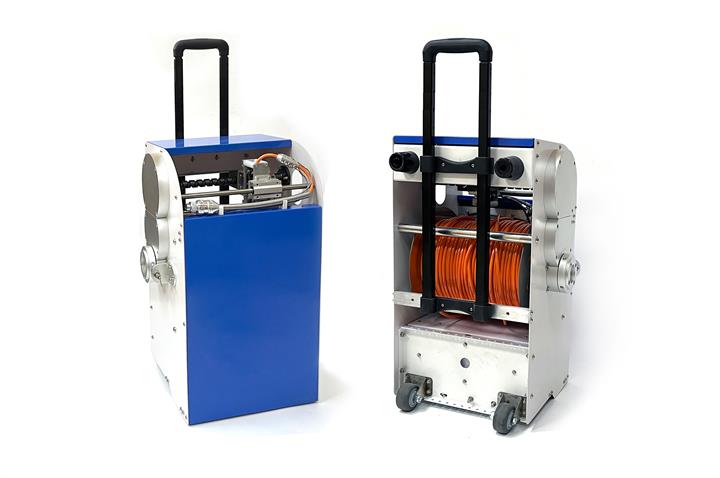

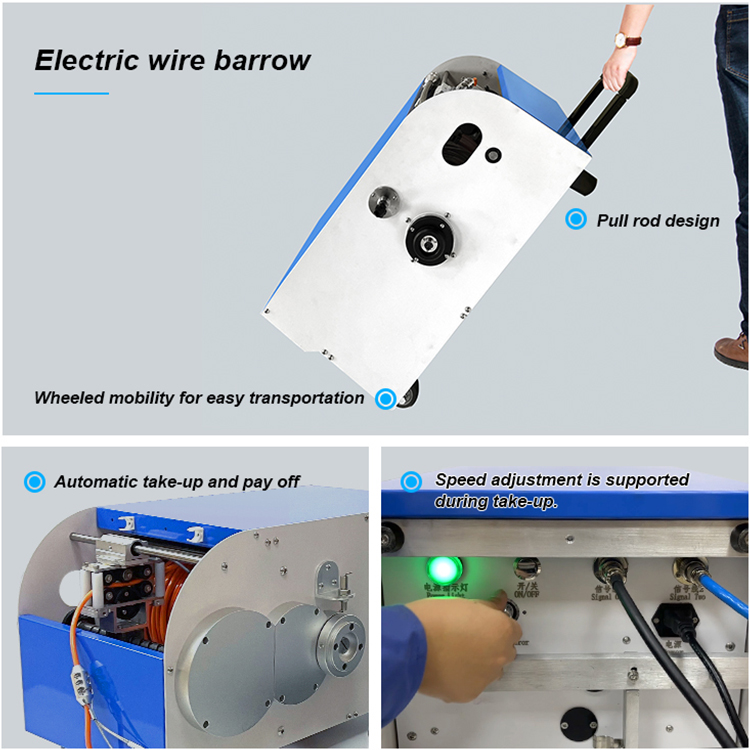

Sewage Pipe Crawling Camera System electric reel wire
  • Name: Electric Winder
  • Cable length:100-200m
  • Cable diameter:7.8mm
  • Cable pay off model: Auto
  • Winding mode: Auto/Maunal
  • Weight: 40kgs standard

FAQ

1.What is the advantage of your products?

We are professional manufacturer in this field with lots of years R&D and market research experience.

2.What can you buy from us?

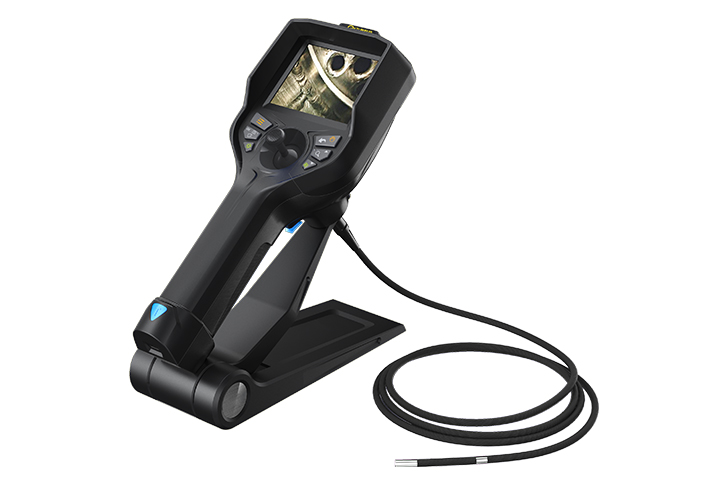

Pipe inspection camera,CCTV Sewer crawler robot,Videoscope camera,Portable Push rod camera,Borehole camera,Sewer cleaning manchine, Pipeline NDT repair .

3.What is the warranty?

We provide 1-2 years warranty after shipment date. Support one year remote warranty service (fault diagnosis, online guidance, parts delivery, etc.)

4.What's your delivery time?

Around 3-10 working days according to exact order quality and stock situation.

5.What's payment methods i can choose?

Paypal or T/T(Bank transfer) or western union also Ali trade assurance.

6.Are you searching distributors and agents for your inspection cameras?

Yes, we are, please contact our salesman for more details. We will protect and support you once you become our distributors and agents.
