Drainage Pipe Inspection Push Camera
Touch screen operation
Long-lasting battery
Imange magnification/edit
Wireless transmission
Defect measurement
7 inch HD touch screen
Multiple camera options available
8~800mm
Megapxial
360 degree endless rotation
IP68

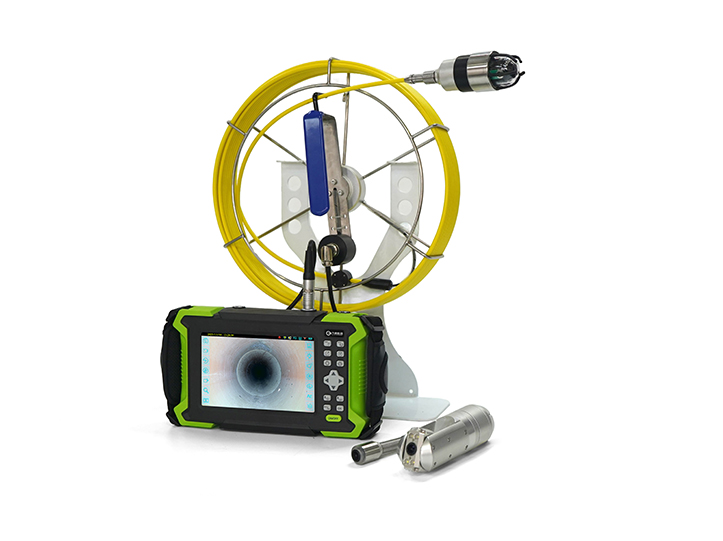

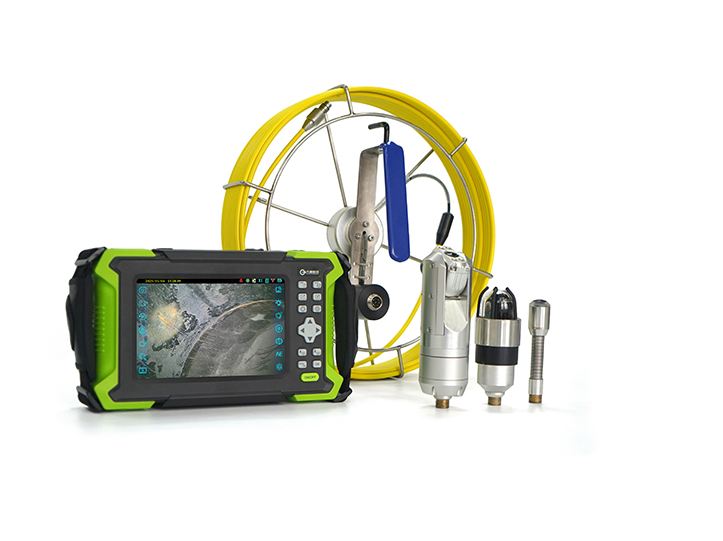

Jiutai GM320 drainage pipe inspection push camera is multifunctional HD pipe inspection tool, adopt a 360° full-view camera lens, a HD light source, a 7 inch touch screen and a hard cable reel(optional length: 10-120m). In order to adapt to different diameters of the pipe, it can match with different lenses (6/8/16/21/37/49/51mm), achieve the perfect balance between versatility, imaging power and ease of use. Besides, the pipe inspection camera supports take photos,videos, enables real-time quick snapshots, and marks the location information of defects within the pipeline.
It can also be matched with a videoscope camera lens enter narrow and curved pipeline. It is suitable for 8-800mm diameter industrial plumbing or complex and narrow equipement internal space, for inspection of corrosion, cracks, welds, foreign matter wear, and internal processing of parts. It has been widely used in energy and power, petrochemical, production and manufacturing, aerospace and military industries.
Long-lasting battery
7 inch screen.

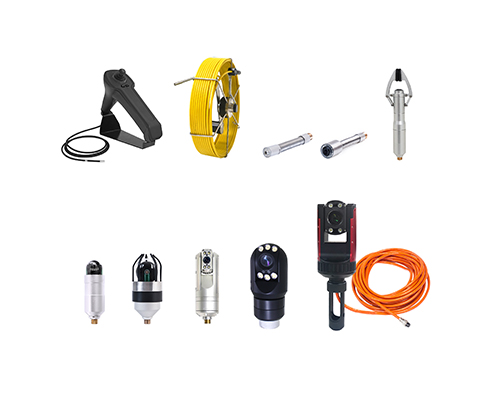

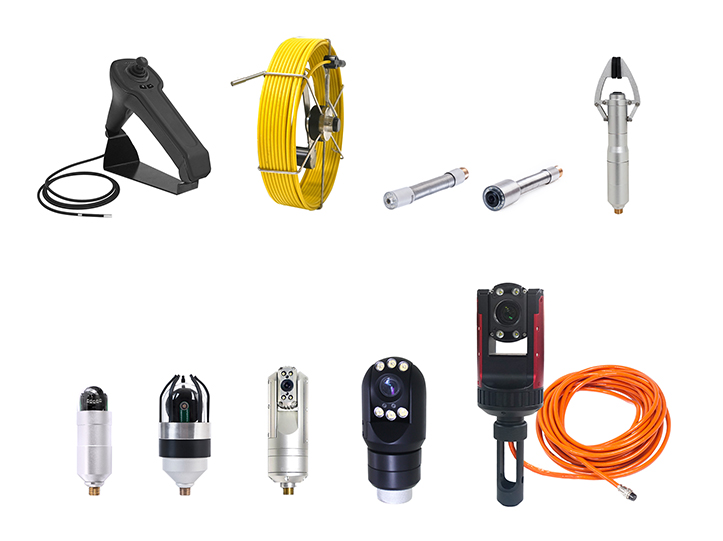

Multiple camera options available.
Meter counter, easy to determine the location of defects.
512HZ is customized.
IP68 Waterproof
Inspection Range: 8mm-800mm
Industrial pixel: 1000000/2000000
Image Edit
Wireless tranmission
Defect measurement
MGP Pixels
| Screen | 7 inch IPS full-view HD touch screen |
| Camera Dia | Multiple camera options available(Seven sizes lens) |
| Inspection range | 8~800mm |
| Pixel | 1920*1080 |
| Camera Len | 360 degree rotation endless,220 degree flip |
| Waterproof | IP68 waterproof |
| Language | Chinese, English, French, Spanish, Russian, etc. 11 languages |
| Main function | Image drawing, image freeze, negative film, measurement ruler, WIFI, temperature measurement, zoom, local resource management, etc. |
| Reel Cable | Handheld Reel Cable, Push-Pull Reel Cable |
| Inspection cable length | 10-120m |
 GT220 |  GT-PTZ |  GM320 | |
| Working length | 10-120m | 10-120m | 10-120m |
| Min/Max Pipe Diameters | 20-400mm | 8-800mm | 8-800mm |
| Waterproof | IP68 | IP68 | IP68 |
| Camera Lens | 37/51mm | 8/21/49mm | 6/21/37/49mm |
| Screen | 10.1 Inch Display | 7 Inch HD Screen | 7 Inch Touch Screen |
| Carry Method | All In One | Split Small size, easy to carry | Split Small size, easy to carry |
| Pixel | 1920X1080 | 1920X1080 | 1920X1080 |
| Other | Customized | ||

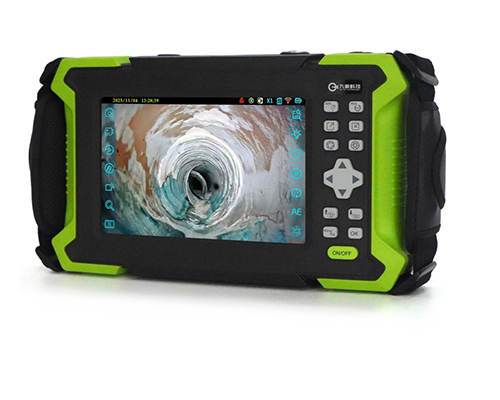

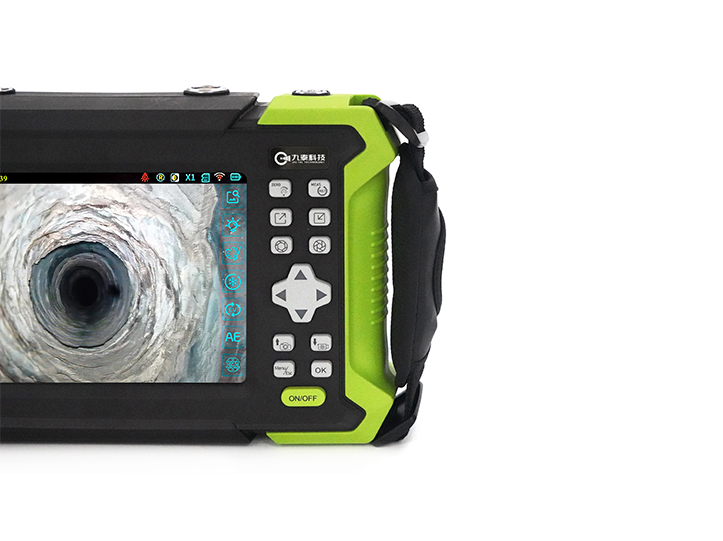

7 Inch IPS full-view HD touch screen
Defect measurement, Real time date displayed and recorded in image/video.
Support image zooming/rotation, multi-touch pinch gesture zooming, easy operation.
Wifi module built in,networkable, remote control.
Work continuously for more than 6 hours when fully charged.
37mm full view lens, 360° rotate 220° flip
16mm wide angle direct, spring-loaded lens, easily pass.
6mm lens adopts an electric control joystick, well control, small and flexible.
LED light source, adjustable light, clear imagesunder different lighting conditions.
IP68 waterproof, can withstand 10 meters of water depth.(Hook camera IP67 Waterproof)
Cable length optional, meet the inspection needs of large/small pipelines or complex structures.
We are professional manufacturer of drainage pipe inspection push camera, Factory price!
Pipe inspection camera,CCTV Sewer crawler robot,Videoscope camera,Portable Push rod camera,Explosion-proof container camera,Borehole camera,Sewer cleaning manchine, Pipeline NDT repair
We provide 1-2 years warranty after shipment date. Support one year remote warranty service (fault diagnosis, online guidance, parts delivery, etc.)
Around 3-10 working days according to exact order quality and stock situation.
Paypal or T/T(Bank transfer) or western union also Ali trade assurance.
Yes, we are, please contact our salesman for more details. We will protect and support you once you become our distributors and agents.
We will recommend you the most suitable program according to your working condition.
