GT100 CCTV Sewer Crawler Camera for Pipeline Inspection

Products Introduce

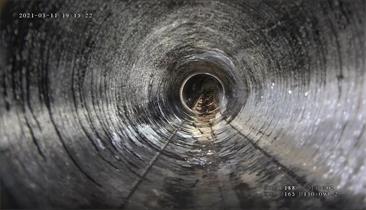

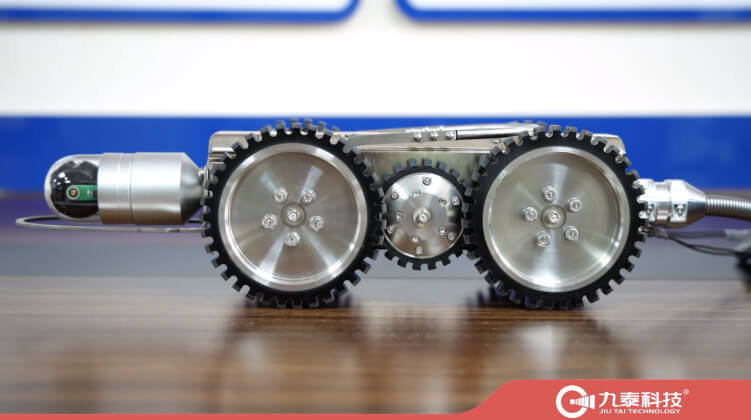

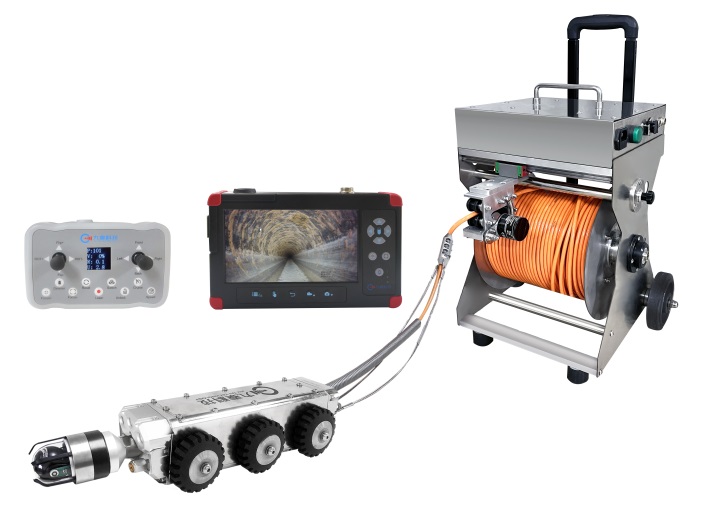

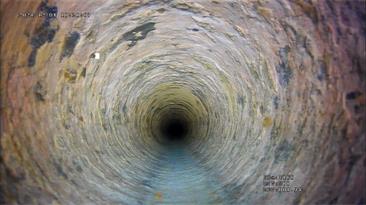

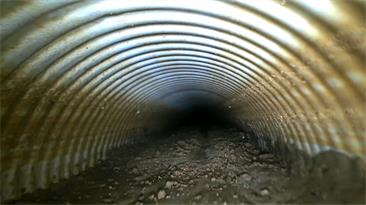

JiuTai GT100 CCTV crawler camera is mainly composed of a camera, crawler body, cable reel, intelligent control system, and so on. Small body, and big power. The industrial HD camera is adopted to record the actual situation inside the pipeline continuously and in real time. According to the video data, the defective nature of the existing problems inside the pipeline is determined and analyzed, providing a reliable technical basis for the next step of maintenance, dredging, and repair.

Application

The small robotic pipe inspection crawler camera is suitable for the inspection of long-distance pipelines with 100mm~1500mm diameter, for the inspection of cracks, corrosion, welds, foreign bodies, and other defects inside the pipeline.

Feature

The camera supports 360°rotate and 220°flip.

Using the electric focusing technology,the detection process is not limited by space size.

Mega resolution,Excellent picture quality, real-time display of the test conditions.

With adjustable brightness of the environment light, so can clearly inspect the pipeline internal blockage and other conditions.

Complete functions, provide timely and detailed picture/video material evidence for the pipe, container internal conditions.

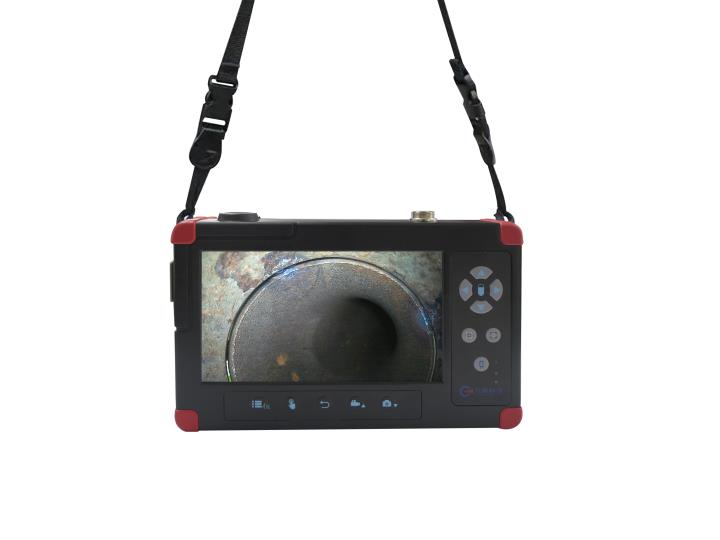

7 inch portable HD display screen, equipped hand-held wire reel,optional length.

Parameters

Display dimension	7 inch
Resolution	1920*1080
Storage capacity	32G(Max. 1 TB)
Camera diameter	51mm
Pixel	2 megapixel
Waterproof	IP68
Lux.	Front 20*10000LUX
Inspection length	60-100m（customized )
Winding mode	Auto/Manual
