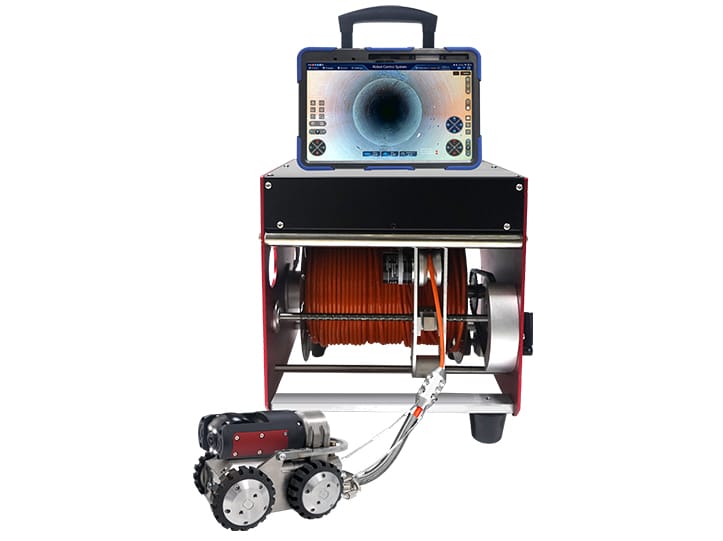

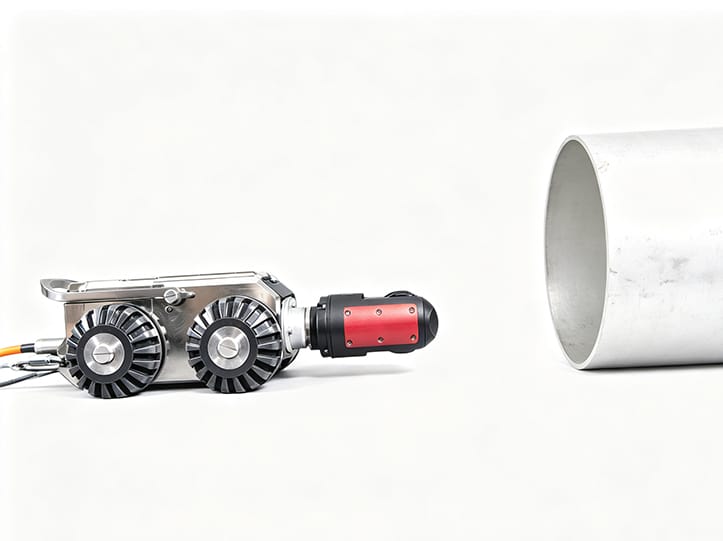

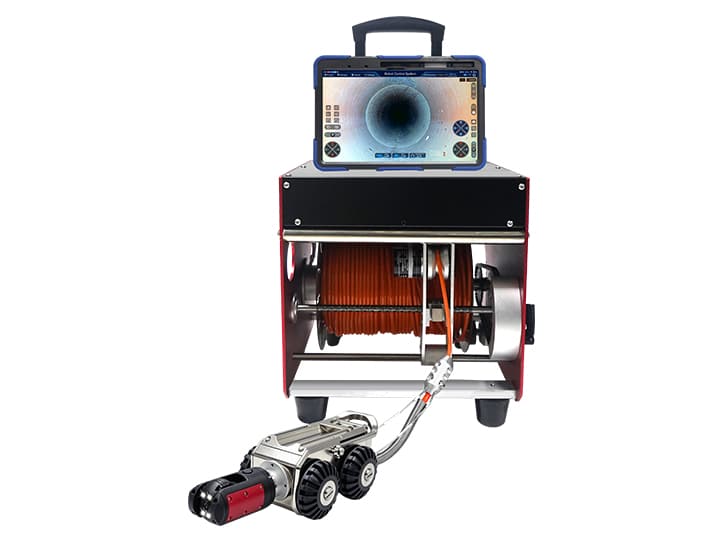

GT105F2 Small pipe inspection robot camera
Quick lens replacement
Flexible turning
12 inch
2560*1600
128G(Max. 1 TB)
49mm
4 megapixel
Auto

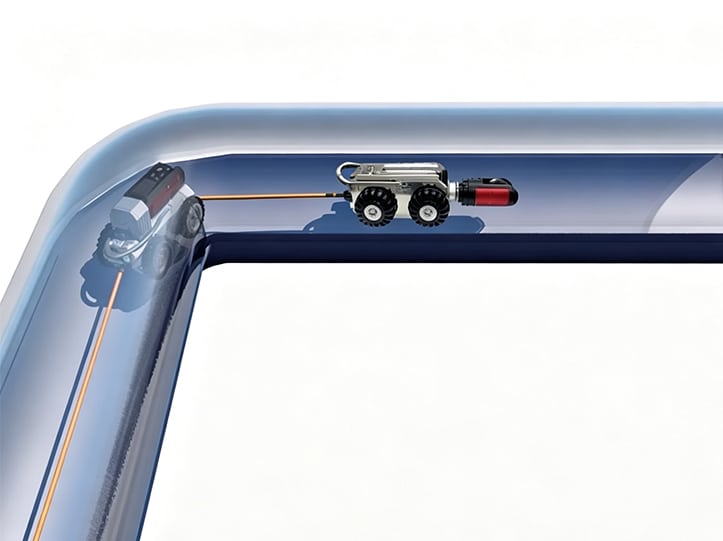

The GT105F2 Small Diameter Pipeline Inspection Robot is specially developed for inspecting narrow, curved, and difficult-to-access pipelines. Featuring a quick-change camera module, adjustable lens position, 360° pan rotation, and IP68 waterproof protection, Supports a 90 degree turn in a 150mm pipe. it delivers clear inspection results in complex pipeline networks while reducing inspection time and labor.
Equipped with a high-definition pan-tilt camera, the robot provides complete visual coverage of pipeline interiors, helping inspectors identify cracks, corrosion, deformation, blockages, and other structural defects with confidence.
GT105F2 small pipe inspection robot camera is widely used in oil and gas pipelines, nuclear power and thermal power plants, chemical plants, refineries, pharmaceutical plants, metallurgy, ships and other fields to promptly inspect hidden dangers. such as wall thickness reduction, corrosion and perforation of pipelines.
Adjustable Camera Position

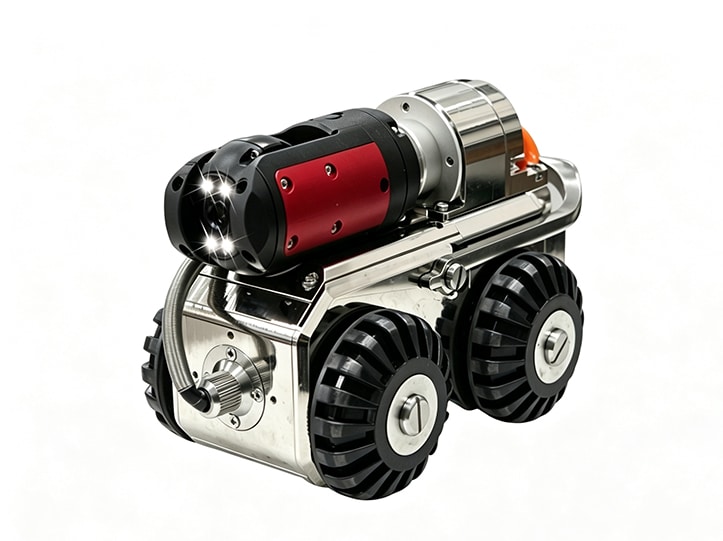

HD Pan-Tilt Camera
IP68 Waterproof Robot
Modular Structure
Intelligent Inspection Report
Lightweight Portable System
Electric wire barrow with small size
Online technical support, Customized logo, OEM, ODM
| Display dimension | 12 inch |
| Resolution | 2560*1600 |
| Storage capacity | 128G(Max. 1 TB) |
| Camera diameter | 49mm |
| Pixel | 4 megapixel |
| Waterproof | IP68 |
| Suitable pipe diameter | 120-1500mm |
| Lux. | Front 200000 LUX |
| Inspection length | 100m |
| Winding mode | Auto |
 GT108 |  GT102B |  GT102A | |
| Working length | 300m | 150m | 150m |
| Min/Max Pipe Diameters | 200-3500mm(8”-137”) | 150-2000mm(6”-78”) | 120-600mm (5”-24”) |
| Waterproof | IP68 | IP68 | IP68 |
| Front camera | Pan Tilt Zoom auto focus | Pan Tilt Zoom auto focus | Pan-and-tilt auto focus |
| Rear-view camera | Yes | Yes | Yes |
| Camera Lens | 360°rotate 220°flip Electric Lifting | 360°rotate 220°flip | 360°rotate 220°flip |
| pixel | 1920X1080 /2560X1600 | 1920X1080 | 1920X1080 |
| Extra Features | Inclinometer, Inspection Report, Wheels of different dia. Laser(optional) | ||
If you have specific inspection requirement，please contact with us . we can offer you the most sutiable pipe solution according to your working condition
We are professional manufacturer of cctv pipe inspection camera system with lots of years R&D and market research experience.The price is competitive and after-sales is guaranteed
Pipe inspection borescope camera,CCTV Sewer crawler robotic camera,small pipe inspection robot camera, Videoscope camera,Portable Push rod camera,Explosion-proof Container Inspection Camera,Borehole camera,Manhole Camera,Sewer cleaning manchine, Pipeline NDT repair .
We provide 1-2 years warranty after shipment date. Support one year remote warranty service (fault diagnosis, online guidance, parts delivery, etc.)
Around 3-10 working days according to exact order quality and stock situation.
Paypal or T/T(Bank transfer) or western union also Ali trade assurance.
Yes, we are, please contact our salesman for more details. And we will protect and support you once you become our distributors and agents.
We will recommend you the most suitable program according to your working condition.
