PRODUCTS
Industrial megapixels
Strong anti-interference
Pressure inspection(optional)
12 inch color LCD
2560*1600
Six lights can be adjusted
2 Megapixel
Count meter
Chinese, English, French, Spanish, Russian
IP68 Waterproof

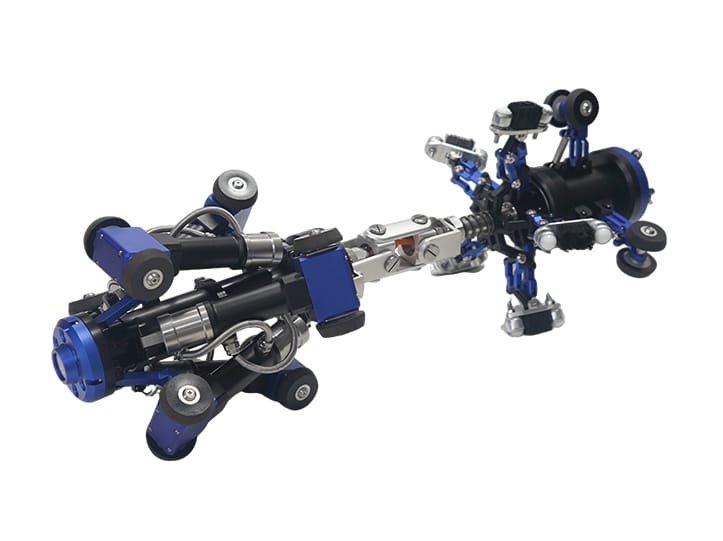

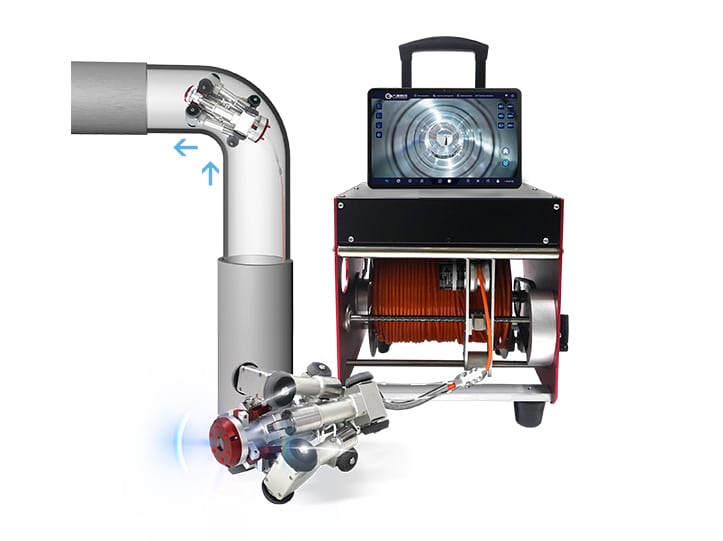

The GTDN-7RWP is a professional pipeline inspection robot designed for live pressurized pipeline inspection in demanding industrial environments. Featuring a multi-joint self-adaptive crawling system, it automatically adjusts to different pipe diameters and navigates elbows, welds, and complex pipeline structures with ease.
Equipped with a high-definition wide-angle camera, intelligent lighting system, and modular expansion platform, the robot delivers clear real-time images for accurate pipeline assessment without interrupting pipeline operation.
GTDN-7RWP vertical pipe inspection robotic camera is Widely used for the inspection and maintenance of pipelines or vessels in sectors such as tap water, district heating, gas, and municipal drainage systems.
GTDN-7RWP Series is suitable for 100-1800mm diameter pipes.
This vertical pipe inspection robotic camera for industrial pipes or containers inspects the cracks, defects, damage detection, block and so on.
IP68 Waterproof

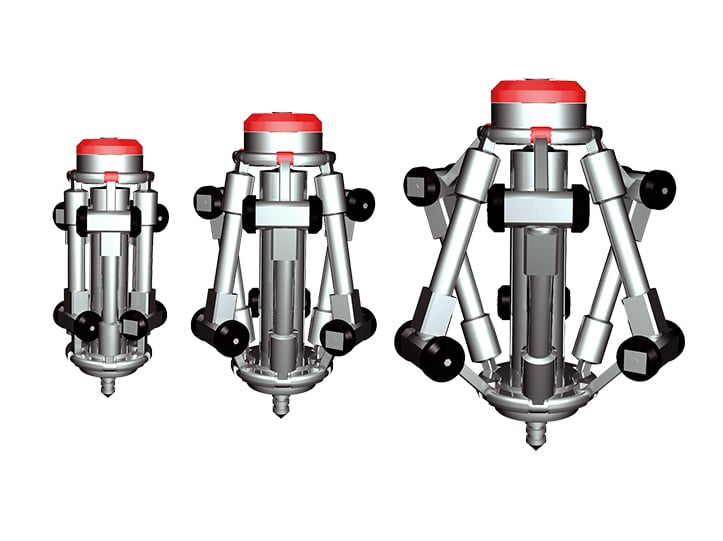

Self-Adaptive Multi-Joint Crawling System
tablet control
HD Wide-Angle Inspection Camera
Live Inspection Under Pressure
Modular Expansion Platform
Long Inspection Distance
Video,photo can be set at will.Max 1 TB.
HDMI, Inspection report.
Electrical barrow, and the cable reel can be automatica .
Endurance: 5H
The machine is easy to clean, low cost maintenance.
| Inspection Type | Live Pressure Pipeline Inspection |
| Pipe Diameter | 100—1800mm |
| Inspection Distance | 60-2000m |
| Camera | HD Wide-angle |
| Lighting | High-brightness LED |
| Drive System | Multi-joint Crawling |
| Waterproof | IP68 Waterproof |
| Control | Tablet |
| Inspection Report | Support |
| Other Function | Sonar |
pipeline inspection robot
Pressurized Pipeline Inspection Robot
Pressurized Pipeline Inspection Robot
 Gt108 |  GT102B |  GT102A | |
| Working length | 300m | 150m | 150m |
| Min/Max Pipe Diameters | 200-3500mm(8”-137”) | 150-2000mm(6”-78”) | 120-600mm (5”-24”) |
| Waterproof | IP68 | IP68 | IP68 |
| Front camera | Pan Tilt Zoom auto focus | Pan Tilt Zoom auto focus | Pan-and-tilt auto focus |
| Rear-view camera | Yes | Yes | Yes |
| Camera Lens | 360°rotate 220°flip Electric Lifting | 360°rotate 220°flip | 360°rotate 220°flip |
| pixel | 1920X1080 /2560X1600 | 1920X1080 | 1920X1080 |
| Extra Features | Inclinometer, Inspection Report, Wheels of different dia. Laser(optional) | ||
Machine Parts Of GTDN-7RWP Pressurized Pipeline Inspection Robot:
Yes. The GTDN-7RWP is specifically designed for live pressure pipeline inspection, allowing inspection while pipelines remain in service.
The pipe inspection robot features a self-adaptive crawling mechanism and can be customized for different pipeline diameters.
Yes. The articulated multi-joint design enables smooth navigation through elbows and curved pipeline sections.
It can identify corrosion, cracks, deposits, weld defects, deformation, blockages, and other internal pipeline conditions.
Yes. real time Images and videos and inspection reports for maintenance documentation.
It is widely apply for petrochemical plants, gas transmission, nuclear power, offshore engineering, district heating, and other industrial pipeline inspection projects.
We will recommend you the most suitable program according to your working condition.
+86 166 9219 0701
Room No. 1009,Xinyuan Financial Square,Jingsan Road,Zhengzhou City
Field:
Underground sewage pipe network inspection for a customer in the Middle East
Equipment:
GT108 Sewer crawler robot camera
Project:
250m sewer drainage inspection project
Field:
Heat Pipeline Field Inspection
Equipment:
CCTV Pipe Crawler Camera System
Project:
300m Heat Pipeline Field Inspection
Project country:
Singapore
Field:
Wind power generation
Equipment:
Industrial pipeline crawler camera
Project:
Wind power blade internal defect inspection
