GT-Veyron Long- Distance Sewer Pipeline Inspection Robot

Products Introduce

Product Advantages

cctv inspection camera

water pipe inspect robotic camera

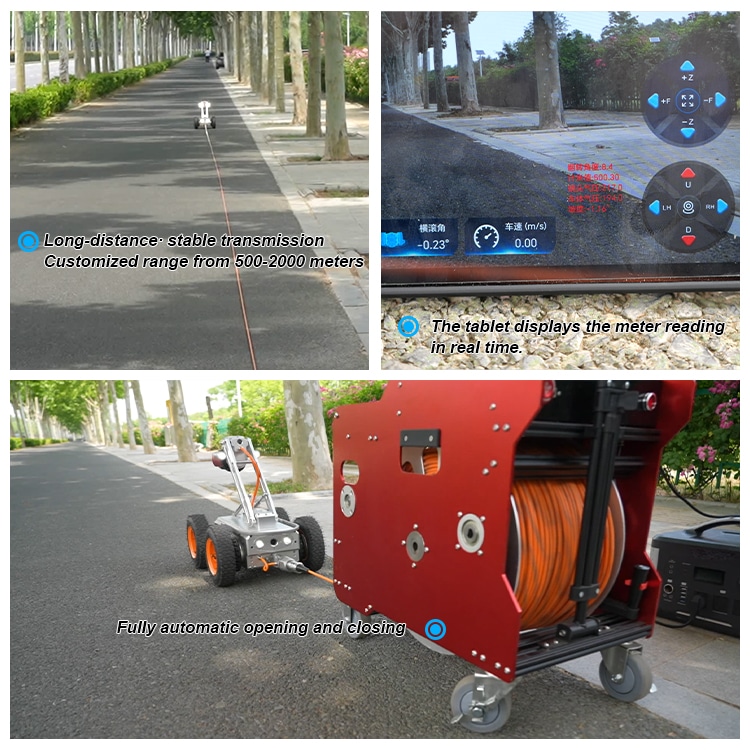

1、Ultra-Long Inspection Distance up to 2000m

Designed for long-distance pipeline inspection, GT-Veyron supports inspection distances from 500m to 2000m. The high-strength composite cable provides stable signal transmission, allowing operators to complete deep pipeline inspections efficiently without frequent equipment relocation.

• Up to 2000m inspection range
• Stable signal transmission
• Suitable for large-scale pipeline networks

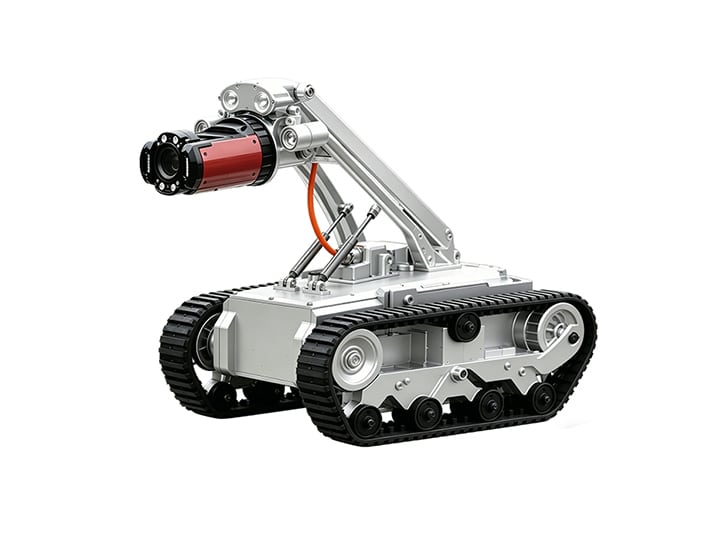

2、Powerful Tracked Crawler for Complex Environments

The tracked crawler platform provides excellent traction and stability, allowing GT-Veyron to move smoothly through challenging pipeline environments including mud, gravel, slopes, and uneven surfaces.

• Strong climbing ability
• Excellent obstacle-crossing performance
• Stable operation in difficult conditions

3、HD Camera System for Accurate Inspect

Equipped with an industrial-grade 5MP high-definition camera, GT-Veyron delivers clear images of internal pipeline conditions. Operators can easily identify defects such as cracks, corrosion, deformation, sediment accumulation, and blockages.

• High-resolution inspection images
• Electric lifting camera
• Clear defect identification

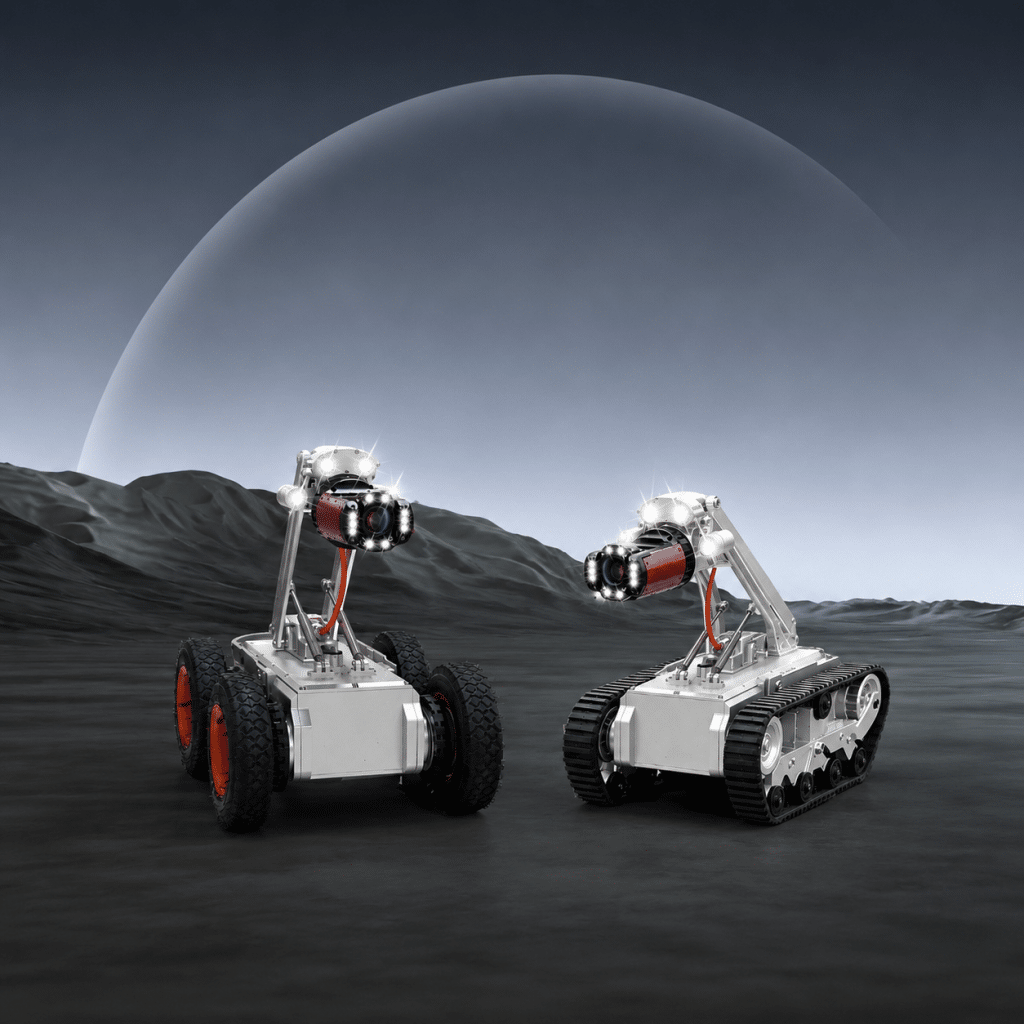

4、Flexible Dual-Mode Driving Design

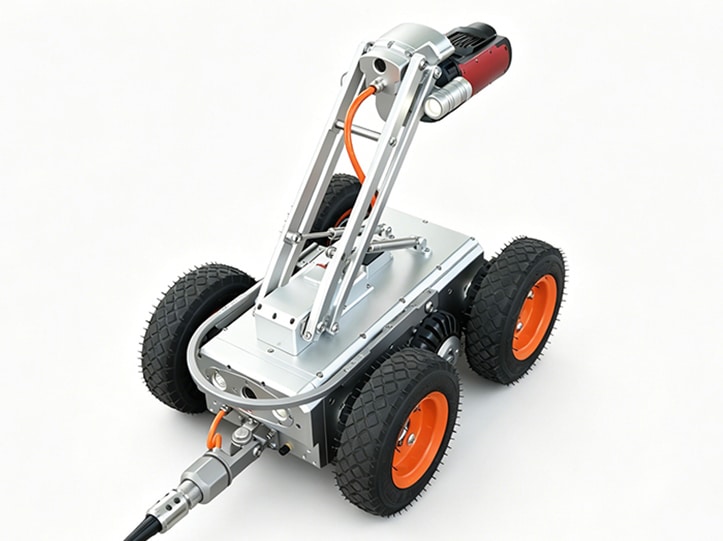

GT-Veyron adopts a flexible crawler and wheel interchangeable design. The tracked mode improves stability in complex environments, while the wheeled mode increases efficiency in smooth pipeline sections.

• Crawler mode for difficult terrain
• Wheel mode for efficient movement
• Adaptable to different inspection conditions

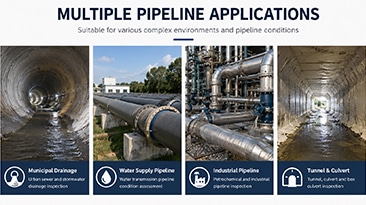

Application

GT-Veyron sewer pipe robot camera is widely used in many fields, such as municipal drainage pipeline inspection, heating pipelines Inspection, industrial pipeline inspection, wastewater pipe inspection, oil pipe inspection, gas pipe detection, underground pipe gallery inspect, construction pipe inspection, chemical pipeline inspection, Tunnel and Culvert Inspection.

GT-Veyron Series is suitable for larger pipes, 300-3500mm diameter.

This Pipe crawler robot cameras for long distance pipes inspects the cracks, defects, damage detection, block and so on.

Feature

Parameters

Comparison of pipe inspection robot camera

	GT-VEYRON	GT104WS	GT102W
Working length	500m	300m	150m
Min/Max Pipe Diameters	300-3500mm	150-3000mm	150-2000mm
Waterproof	IP68	IP68	IP68
Front camera	Pan Tilt Zoom auto focus	Pan Tilt Zoom auto focus	Pan-and-tilt auto focus
Rear-view camera	Yes	Yes	Yes
Camera Lens	360°rotate  220°flip Electric Lifting	360°rotate  220°flip Electric Lifting	360°rotate 220°flip
pixel	5MP	4MP	2MP-4MP
Extra Features	Inclinometer, Inspection Report, Wheels of different dia. Laser(optional)

Machine Parts

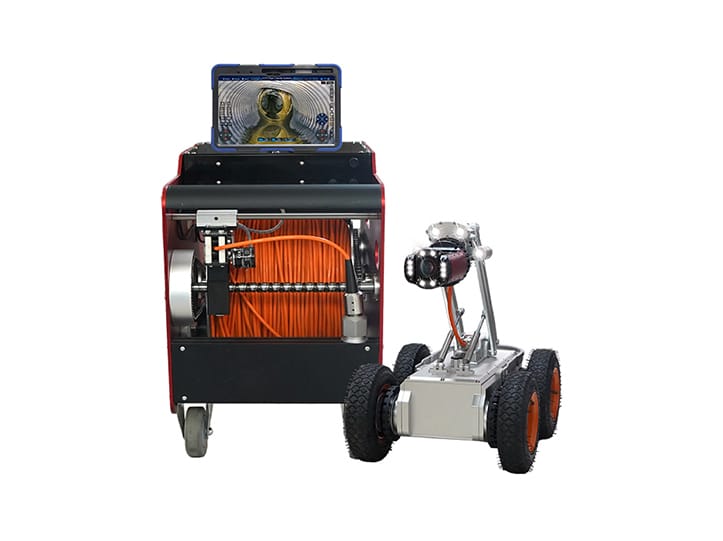

GT-Veyron CCTV Sewer Crawler Robot Components:

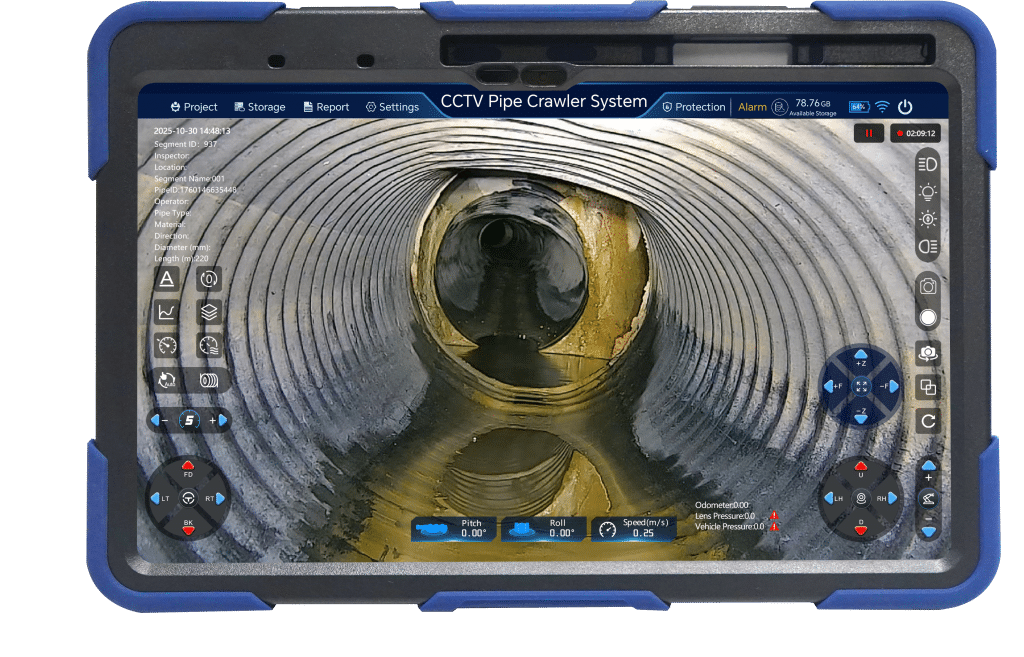

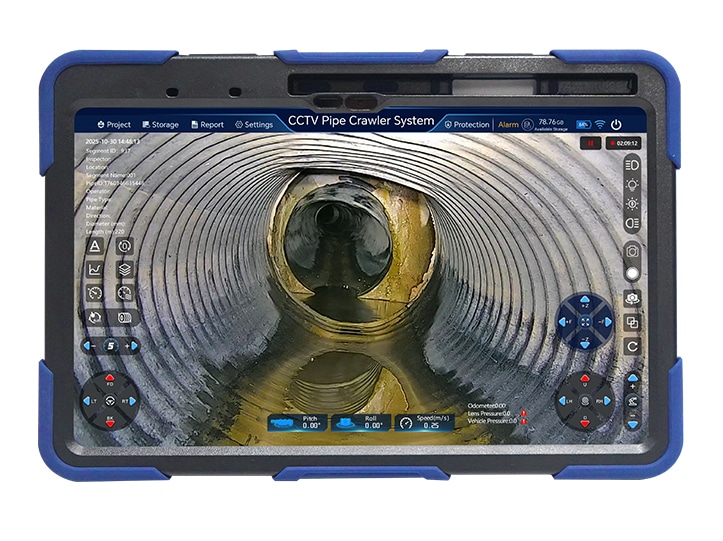

• Name: 12.1 inches touch tablet
• Resolution:2500*1600
• Function: Support photo,video,will see and other functions
• Battery: 8H
• Data transmission: Wireless
• Storage capacity:128G(Support 1TB)
• Display Functions: defect location and generate inspection curves
• Report software: One-click generate inspection report

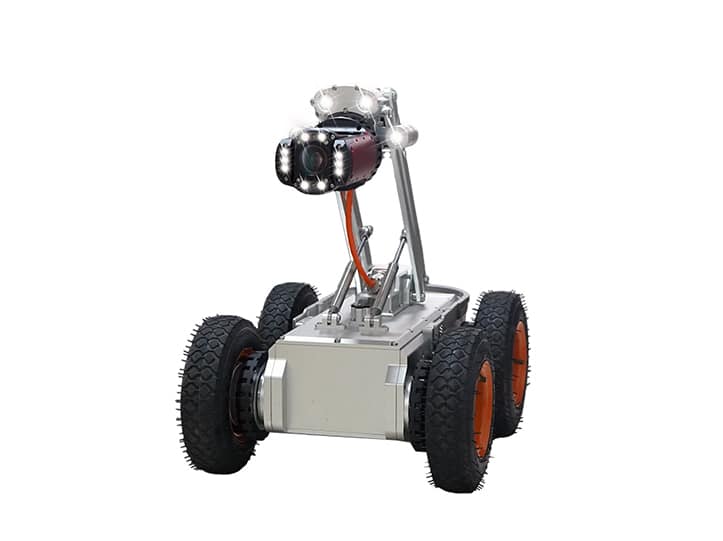

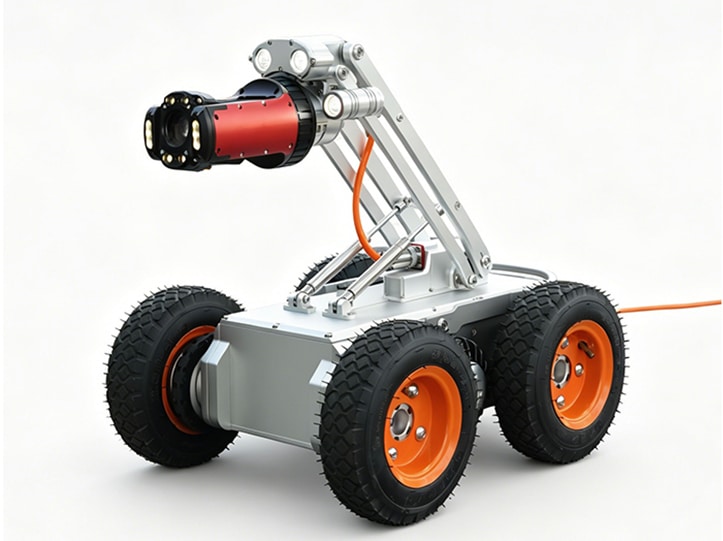

• Name: GT-Veyron CCTV Crawler System
• Pipe diameter: 300-3500mm
• Pixel: 5MP
• Zoom: 10 time auto zoom in and out
• Front camera: 360° rotate,220 flip

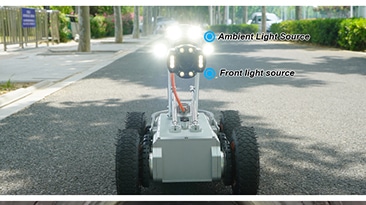

• Camera light: 3 level adjustable
• Camera lifting: electrical
• Waterproof: IP68
• Super obstacle and climbing ability
• Crawler and wheeled optional

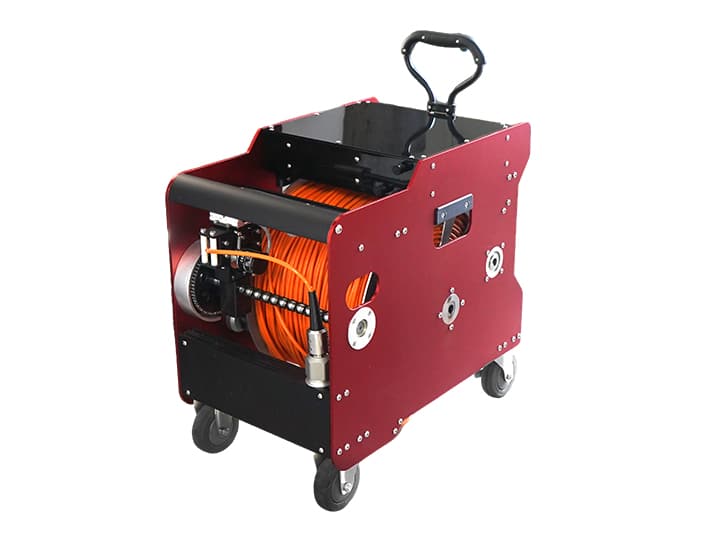

• Name: Electric Winder
• Size: 594×386×710mm(with pull handle)
• Cable length:100-500m
• Cable: Kevlar cable winder, Tensile strength 300Kg,waterproof, oil-proof and wear-resistant
• Cable pay off model: Auto
• Winding mode: Auto/Maunal
• Weight: 72Kg（including 500meters cables）
• Count meter: standard
