GT102W 4MP Pipe Inspection Robotic System
Suitable 6~98 inch pipeline
Auto focusing
4 MGP
Inspection report system
12 inch
2560*1600
Tablet controller
Suitable pipe diameter: 150-2500mm
128G
360° endless rotation,220° flip,10 times zoom in and out
Support report system
73/110mm optional
The GT102W is Jiutai's latest-generation pipe inspection robot, developed to offer higher image quality, greater durability, and more efficient pipeline inspections. Upgraded from the GT102B CCTV pipe crawler, it features a 4MP HD camera for sharper imaging, upgraded wear-resistant connector, and support one-click inspection report system. Designed for pipelines ranging from 150mm to 2500mm, the GT102W combines 360° camera rotation, 220° camera flip, 10 times auto zoom in and out, and a 100–150m electric cable reel to provide comprehensive inspection coverage in municipal sewer systems, industrial pipelines, drainage networks, water supply systems, and utility conduits.
Whether inspecting corrosion, cracks, joint displacement, sediment buildup, or blockages, the GT102W helps professionals obtain accurate inspection data while improving operational efficiency and reducing maintenance costs.

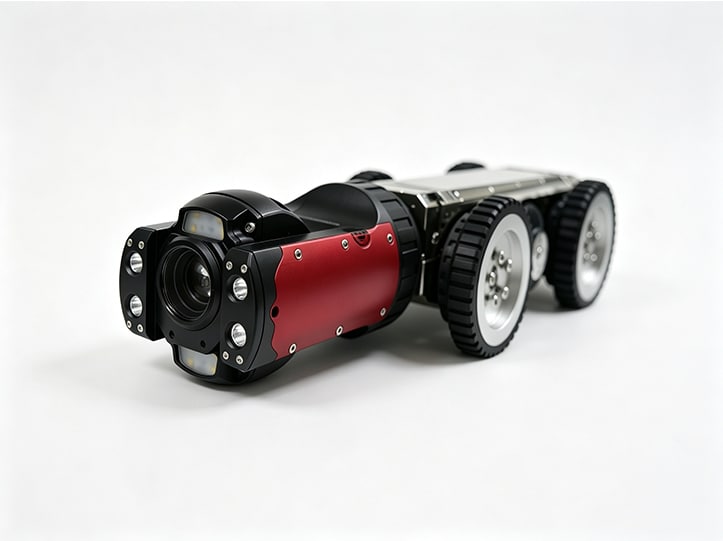

4MP HD Camera
10 times optical,12times digital

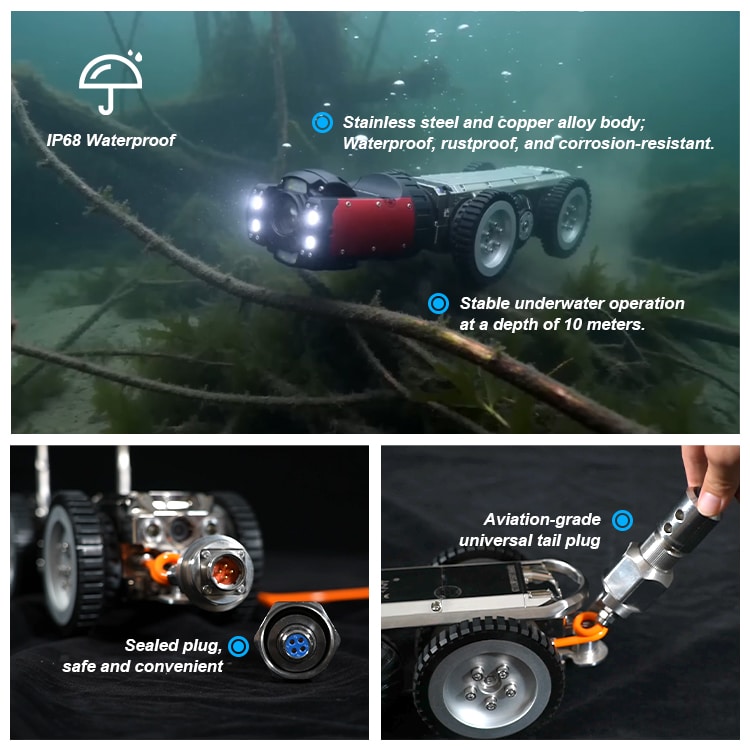

IP68 Waterproof
Front & Rear Dual Camera System
150–2500mm Pipe Diameter Range
100–150m Electric Cable Reel
360° Rotation & 220° Camera Flip

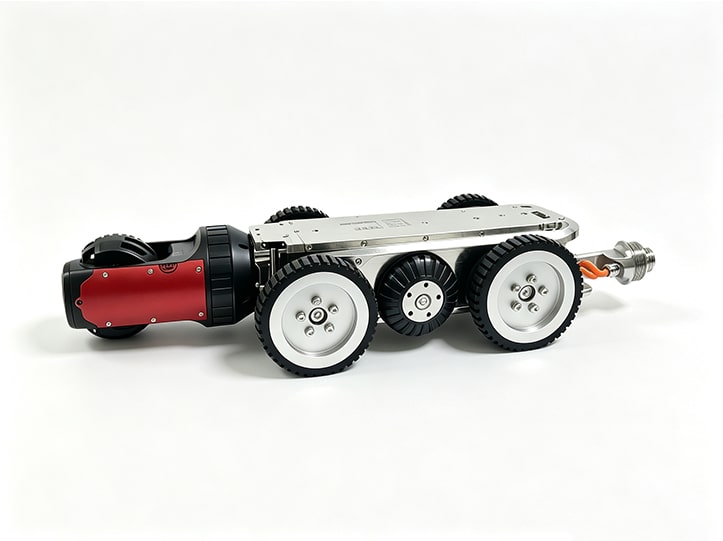

Six-wheel drive
High-Precision Distance Counter

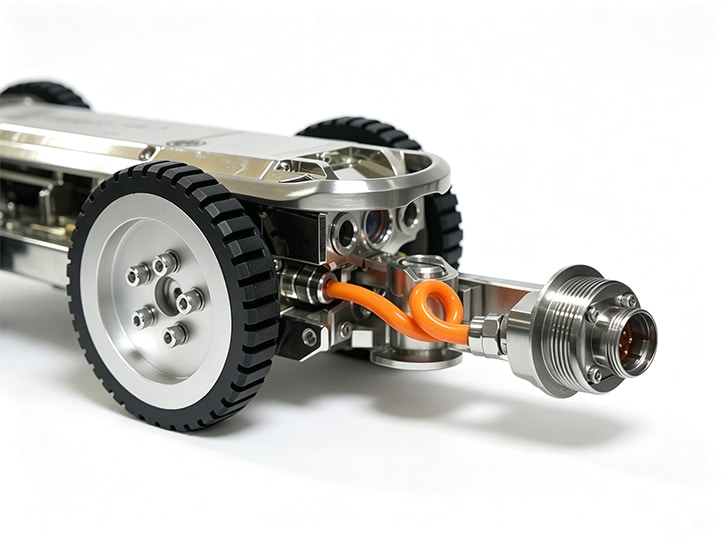

Upgraded Wear-Resistant Rear Connector
12" Industrial Tablet Controller
One-Click Inspection Report Generation
The GT102W pipe inspection crawler robot is designed for professional internal visual inspection across a wide range of pipeline systems and industrial facilities. It is widely applied in:
With HD imaging and super crawler movement, GT102W helps inspector identify potential pipeline issues such as deposits, blockages, corrosion, cracks, deformation, and structural damage without excavation.
| Screen size | 12 inch |
| Resolution | 2560*1600 |
| Screen material | IPS HD the full view screen |
| Language | English, Spanish, Russian, French |
| Keyboard | Standard |
| Display character | Meter counter |
| Slope | |
| Storage | U disk |
| Storage capacity | Standard: 128G |
| Video output interface 1 | HDMI |
| Special function | Lens reset function, meter clear zero, protection remove function |
| Wheels diameter | 73mm,110mm |

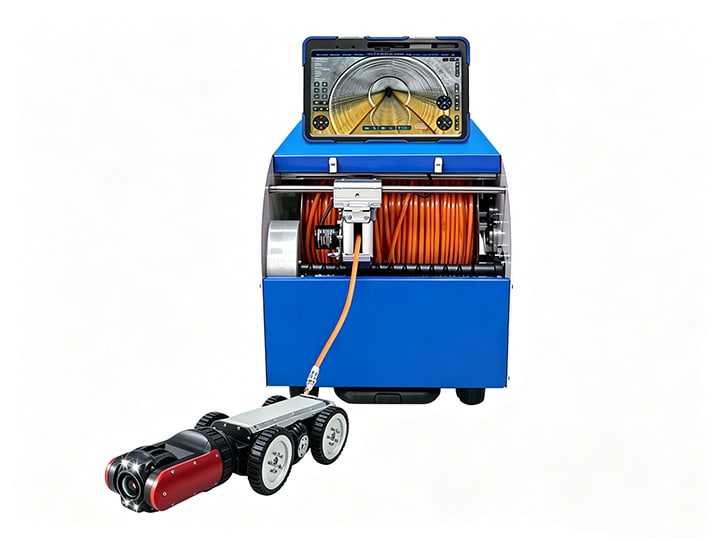

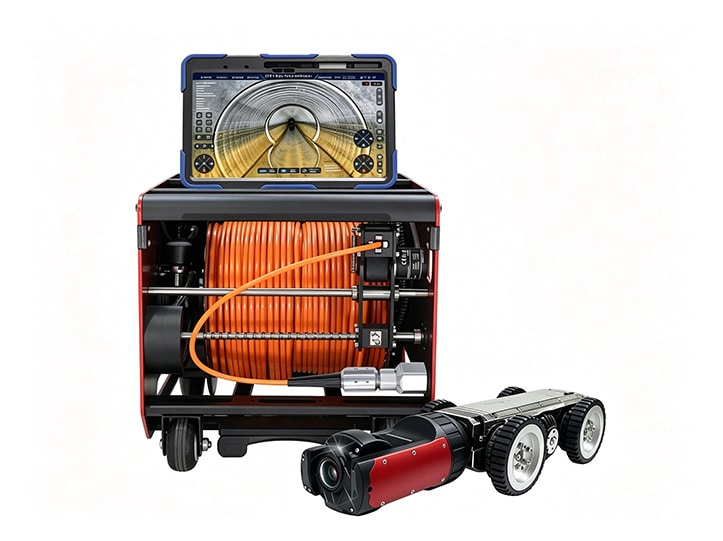

GT102W 4MP Pipe Inspection Robot System Components:

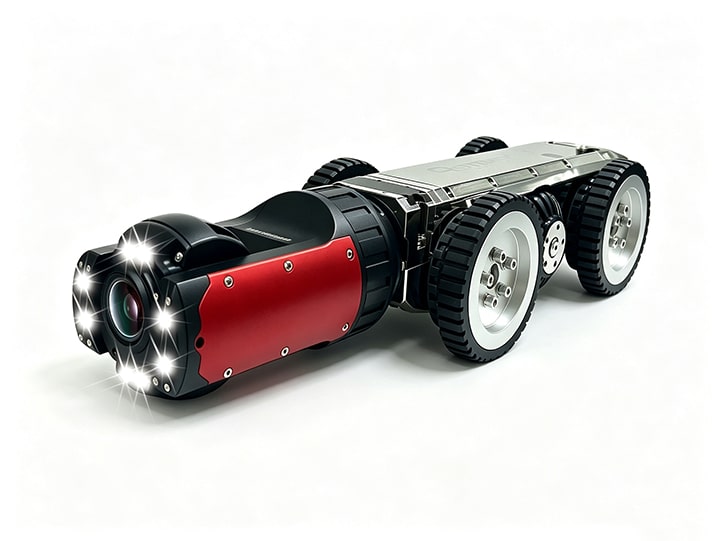

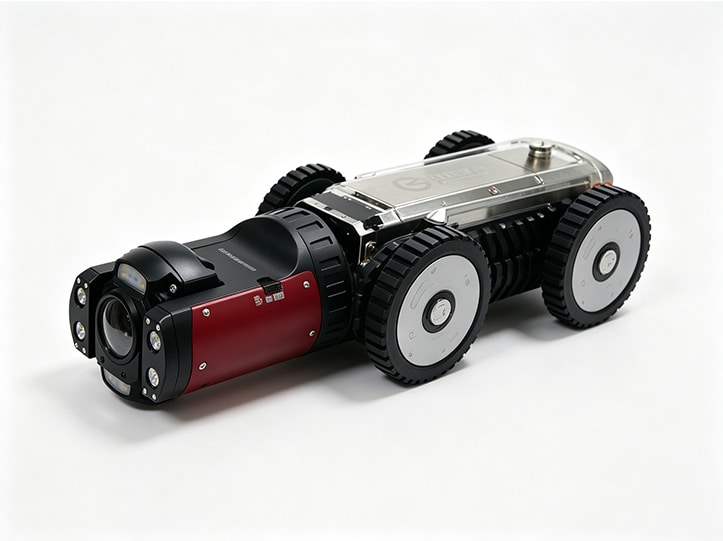

Powerful Crawler with 4MP HD Inspection Camera
The crawler unit is the core inspection component of the GT102W system. Equipped with a 4MP HD camera, 360° rotation, and 220° camera flip function, it provides comprehensive visual inspection inside pipelines.
Its robust crawler design ensures stable movement through complex pipeline environments, while the IP68 waterproof structure allows reliable operation in wet conditions.

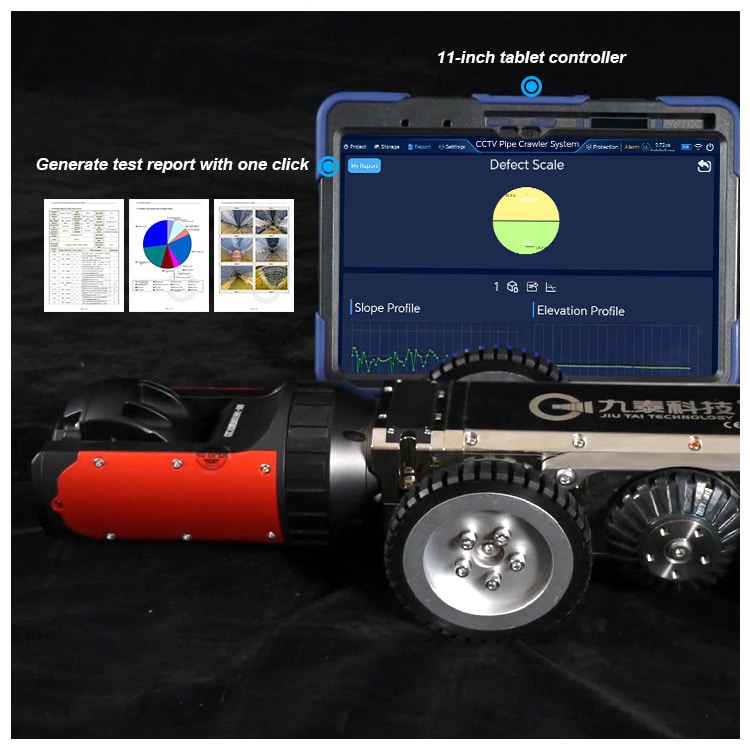

Operators can control forward/backward movement, adjust camera position, capture images and videos, add inspection notes, and generate professional inspection reports.
Key Features:
Real-time video display
Remote crawler control
Image and video recording
Inspection data management
One-click report generation
The electric cable reel provides smooth cable deployment and retrieval, helping operators complete inspections more efficiently.
The integrated cable management system improves operation convenience and reduces manual workload during field inspections.
Key Features:
Easy transportation and operation
Electric cable winding system
Stable signal transmission
 GT108 |  GT102W |  GT102A | |
| Working length | 300m | 150m | 150m |
| Min/Max Pipe Diameters | 200-3500mm(8”-137”) | 150-2500mm(6”-98”) | 120-600mm (5”-24”) |
| Waterproof | IP68 | IP68 | IP68 |
| Front camera | Pan Tilt Zoom auto focus | 10 times Zoom | Pan-and-tilt auto focus |
| Rear-view camera | Yes | Yes | Yes |
| Camera Lens | 360° rotate 220° flip Electric Lifting | 360° rotate 220° flip | 360°rotate 220°flip |
| pixel | 1920X1080 /2560X1600 | 2560X1440 | 1920X1080 |
| Extra Features | Inclinometer, Inspection Report, Wheels of different dia. Laser(optional | ||
We are professional manufacturer of cctv pipe inspection camera system with lots of years R&D and market research experience.The price is competitive and after-sales is guaranteed
Pipe inspection borescope camera,CCTV Sewer crawler robotic camera,Videoscope camera,Portable Push rod camera,Explosion-proof Container Inspection Camera,Borehole camera,Manhole Camera,Sewer cleaning manchine, Pipeline NDT repair .
We provide 1-2 years warranty after shipment date. Support one year remote warranty service (fault diagnosis, online guidance, parts delivery, etc.)
Around 3-10 working days according to exact order quality and stock situation.
Paypal or T/T(Bank transfer) or western union also Ali trade assurance.
Yes, we are, please contact our salesman for more details. We will protect and support you once you become our distributors and agents.
We will recommend you the most suitable program according to your working condition.
